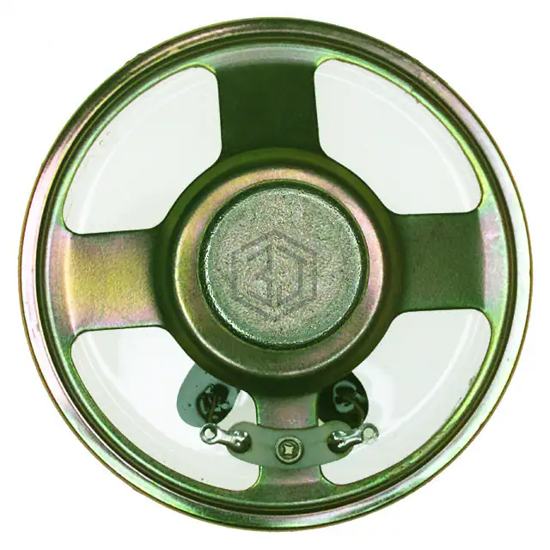

SPEAKER 8OHM 500MW TOP PORT 88DB
GA0701M is a Speakers manufactured by CUI Devices. SPEAKER 8OHM 500MW TOP PORT 88DB. Key specifications: size / dimension 2.756" Dia (70.00mm), termination Solder Eyelet(s), power - max 1 W, frequency range 400 Hz ~ 3.7 kHz.
In Stock: 1,641
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 400 Hz ~ 3.7 kHz |
| Frequency - Self Resonant | 400Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 88.00 |
| Efficiency - Testing | 1W/500mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 500 mW |
| Power - Max | 1 W |
| Port Location | Top |
| Shape | Round |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Alnico (AlNiCo) |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Eyelet(s) |
| Size / Dimension | 2.756" Dia (70.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
Submit your RFQ for GA0701M and get a quote within 24 hours.
