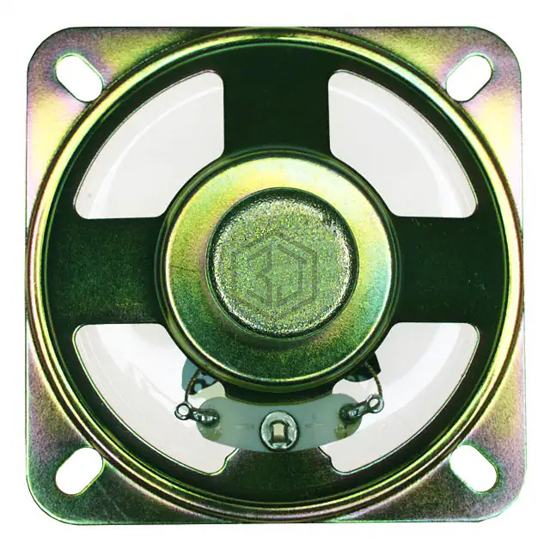

SPEAKER 8OHM 500MW TOP PORT 87DB
GA0666M is a Speakers manufactured by CUI Devices. SPEAKER 8OHM 500MW TOP PORT 87DB. Key specifications: size / dimension 2.598" L x 2.598" W (66.00mm x 66.00mm), termination Solder Eyelet(s), power - max 1 W, frequency range 400 Hz ~ 11 kHz.
In Stock: 5,713
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 400 Hz ~ 11 kHz |
| Frequency - Self Resonant | 400Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 87.00 |
| Efficiency - Testing | 500mW/500mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 500 mW |
| Power - Max | 1 W |
| Port Location | Top |
| Shape | Round, Square Frame |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Alnico (AlNiCo) |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Eyelet(s) |
| Size / Dimension | 2.598" L x 2.598" W (66.00mm x 66.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
Submit your RFQ for GA0666M and get a quote within 24 hours.
