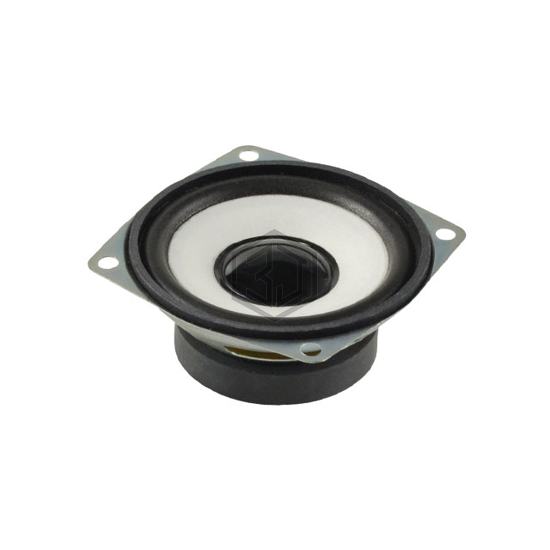

SPEAKER 8OHM 3W TOP PORT 104DB
CSS-66668N is a Speakers manufactured by CUI Devices. SPEAKER 8OHM 3W TOP PORT 104DB. Key specifications: size / dimension 2.598" L x 2.598" W (66.00mm x 66.00mm), termination Solder Eyelet(s), power - max 4 W, frequency range 160 Hz ~ 15 kHz.
In Stock: 1,865
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 160 Hz ~ 15 kHz |
| Frequency - Self Resonant | 200Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 101.00 |
| Efficiency - Testing | 1W/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 3 W |
| Power - Max | 4 W |
| Port Location | Top |
| Shape | Round, Square Frame |
| Material - Cone | Paper/Foam |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Eyelet(s) |
| Size / Dimension | 2.598" L x 2.598" W (66.00mm x 66.00mm) |
| Height - Seated (Max) | 1.142" (29.00mm) |
