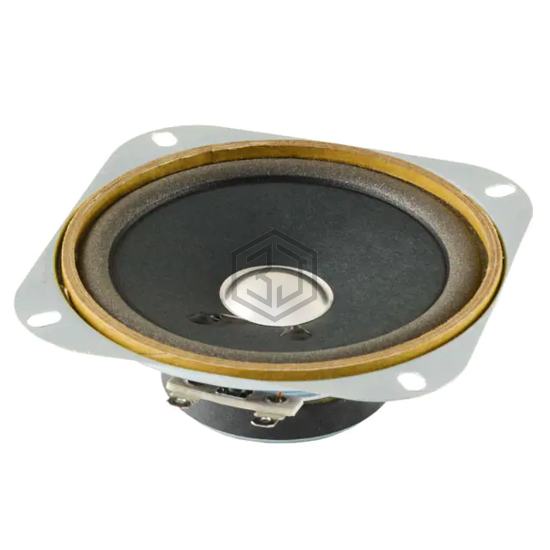

CSS-1021028N - CUI Devices - Speakers

CSS-1021028N

CUI Devices

SPEAKER 8OHM 10W TOP PORT 107DB

CSS-1021028N is a Speakers manufactured by CUI Devices. SPEAKER 8OHM 10W TOP PORT 107DB. Key specifications: size / dimension 4.016" L x 4.016" W (102.00mm x 102.00mm), termination Solder Eyelet(s), power - max 12 W, frequency range 92 Hz ~ 7.8 kHz.

In Stock: 9,966

Product Attributes

AttributeValue
Product StatusActive
TechnologyMagnetic
TypeGeneral Purpose
Frequency Range92 Hz ~ 7.8 kHz
Frequency - Self Resonant115Hz
Impedance8 Ohms
Efficiency - dBA107.00
Efficiency - Testing1W/100mm
Efficiency - TypeSound Pressure Level (SPL)
Power - Rated10 W
Power - Max12 W
Port LocationTop
ShapeRound, Square Frame
Material - ConePaper/Foam
Material - MagnetNd-Fe-B
Ingress Protection-
Ratings-
TerminationSolder Eyelet(s)
Size / Dimension4.016" L x 4.016" W (102.00mm x 102.00mm)
Height - Seated (Max)1.398" (35.50mm)

Frequently Asked Questions

CSS-1021028N is a Speakers manufactured by CUI Devices. SPEAKER 8OHM 10W TOP PORT 107DB

The size of CSS-1021028N is 4.016" L x 4.016" W (102.00mm x 102.00mm).

The termination type of CSS-1021028N is Solder Eyelet(s).

The power rating of CSS-1021028N is 12 W.

The resistance of CSS-1021028N is 8 Ohms.
