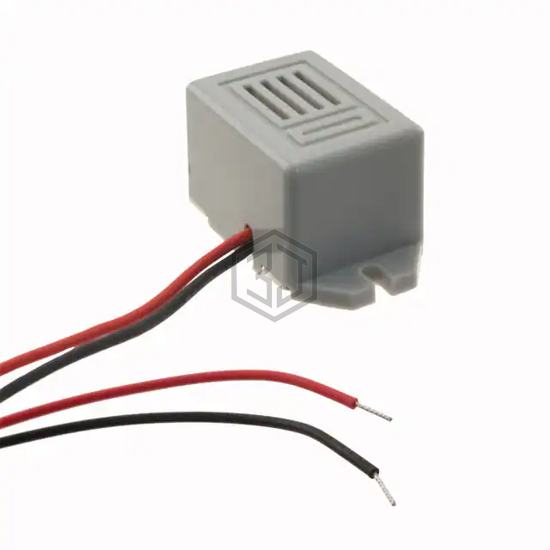

BUZZER MAGNETIC 24V 32X17 FLANGE
CS-3624 is a Alarms, Buzzers, and Sirens manufactured by CUI Devices. BUZZER MAGNETIC 24V 32X17 FLANGE. Key specifications: mounting type Panel Mount, Flange, operating temperature -20°C ~ 60°C, voltage - rated 24 V, current - supply 24mA.
In Stock: 351
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 24 V |
| Voltage Range | 20 ~ 28V |
| Frequency | - |
| Technology | Magnetic |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 76dB @ 24V, 30cm |
| Current - Supply | 24mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 60°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount, Flange |
| Termination | Wire Leads |
| Size / Dimension | 1.260" L x 0.669" W (32.00mm x 17.00mm) |
| Height - Seated (Max) | 0.630" (16.00mm) |
