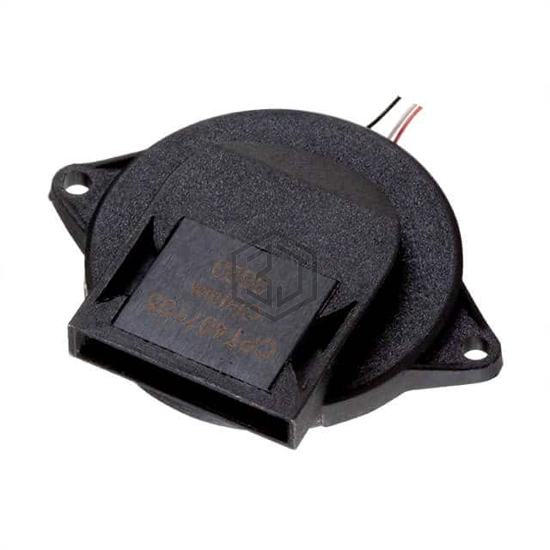

BUZZER PIEZO 14V 35.5MM FLANGE
CPT-407-105-L60 is a Alarms, Buzzers, and Sirens manufactured by CUI Devices. BUZZER PIEZO 14V 35.5MM FLANGE. Key specifications: mounting type Panel Mount, Flange, operating temperature -30°C ~ 85°C, voltage - rated 14 V, current - supply 45mA.
In Stock: 812
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | DC |
| Voltage - Rated | 14 V |
| Voltage Range | 6 ~ 16V |
| Frequency | 3.2kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 105dB @ 14V, 30cm |
| Current - Supply | 45mA |
| Port Location | Side |
| Operating Temperature | -30°C ~ 85°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount, Flange |
| Termination | Wire Leads with Connector |
| Size / Dimension | 1.398" Dia (35.50mm) |
| Height - Seated (Max) | 0.281" (7.15mm) |
