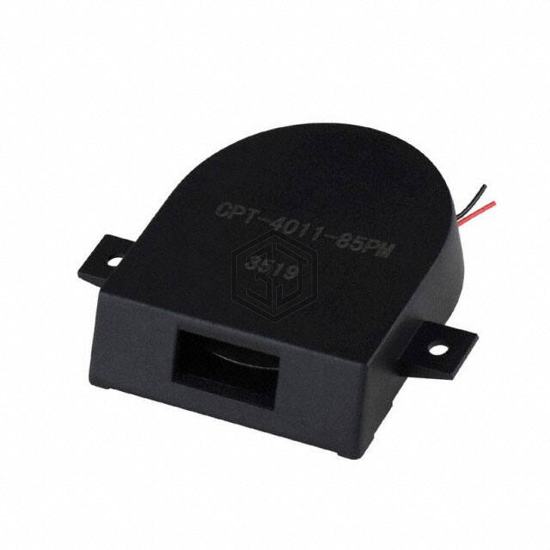

BUZZER PIEZO 12V 48X46.5 FLANGE
CPT-4011-85PM is a Alarms, Buzzers, and Sirens manufactured by CUI Devices. BUZZER PIEZO 12V 48X46.5 FLANGE. Key specifications: mounting type Panel Mount, Flange, operating temperature -30°C ~ 80°C, voltage - rated 12 V, current - supply 30mA.
In Stock: 388
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 12 V |
| Voltage Range | 60V (Max) |
| Frequency | 3.25kHz |
| Technology | Piezo |
| Operating Mode | - |
| Duration | - |
| Sound Pressure Level (SPL) | 85dB @ 50V, 300cm |
| Current - Supply | 30mA |
| Port Location | Side |
| Operating Temperature | -30°C ~ 80°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount, Flange |
| Termination | Wire Leads |
| Size / Dimension | 1.890" L x 1.831" W (48.00mm x 46.50mm) |
| Height - Seated (Max) | 0.472" (12.00mm) |
Submit your RFQ for CPT-4011-85PM and get a quote within 24 hours.
