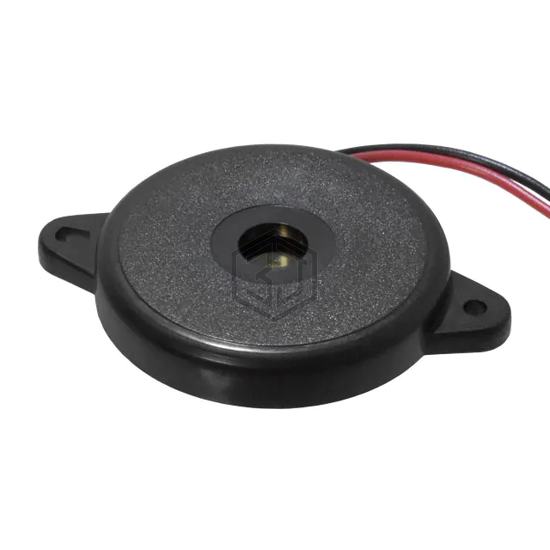

BUZZER PIEZO 12V 30MM FLANGE
CPT-3055-90PM is a Alarms, Buzzers, and Sirens manufactured by CUI Devices. BUZZER PIEZO 12V 30MM FLANGE. Key specifications: mounting type Panel Mount, Flange, operating temperature -20°C ~ 60°C, voltage - rated 12 V, current - supply 15mA.
In Stock: 384
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 12 V |
| Voltage Range | 1 ~ 30V |
| Frequency | 2.5kHz |
| Technology | Piezo |
| Operating Mode | - |
| Duration | - |
| Sound Pressure Level (SPL) | 80dB @ 12V, 10cm |
| Current - Supply | 15mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 60°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount, Flange |
| Termination | Wire Leads |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
Submit your RFQ for CPT-3055-90PM and get a quote within 24 hours.
