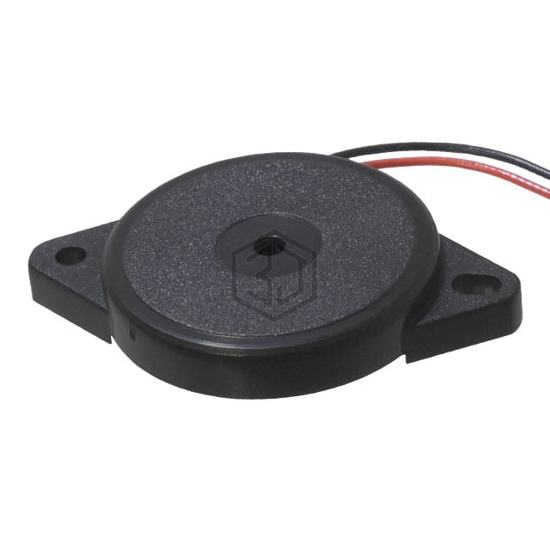

BUZZER PIEZO 12V 23MM FLANGE
CPT-2305-90PM is a Alarms, Buzzers, and Sirens manufactured by CUI Devices. BUZZER PIEZO 12V 23MM FLANGE. Key specifications: mounting type Panel Mount, Flange, operating temperature -20°C ~ 60°C, voltage - rated 12 V, current - supply 5mA.
In Stock: 656
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 12 V |
| Voltage Range | 3 ~ 30V |
| Frequency | 4kHz |
| Technology | Piezo |
| Operating Mode | - |
| Duration | - |
| Sound Pressure Level (SPL) | 90dB @ 12V, 10cm |
| Current - Supply | 5mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 60°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount, Flange |
| Termination | Wire Leads |
| Size / Dimension | 0.906" Dia (23.00mm) |
| Height - Seated (Max) | 0.217" (5.50mm) |
Submit your RFQ for CPT-2305-90PM and get a quote within 24 hours.
