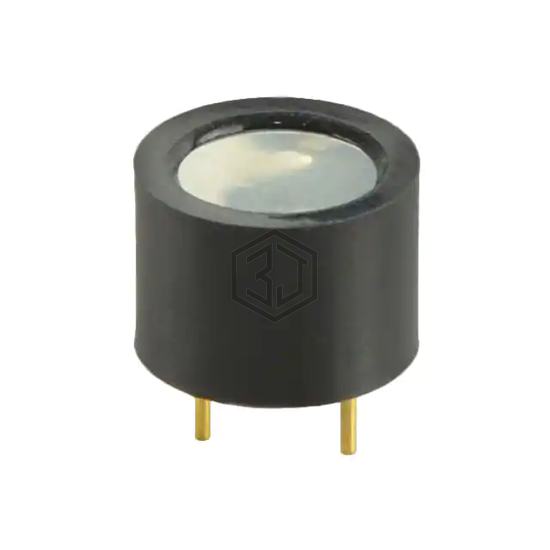

BUZZER PIEZO 10V 14MM TH
CPT-1495CI-300 is a Alarms, Buzzers, and Sirens manufactured by CUI Devices. BUZZER PIEZO 10V 14MM TH. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 85°C, voltage - rated 10 V, current - supply 12mA.
In Stock: 196
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 10 V |
| Voltage Range | 30V (Max) |
| Frequency | 4.25kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 84dB @ 10V, 10cm |
| Current - Supply | 12mA |
| Port Location | Top |
| Operating Temperature | -30°C ~ 85°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 0.551" Dia (14.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
Submit your RFQ for CPT-1495CI-300 and get a quote within 24 hours.
