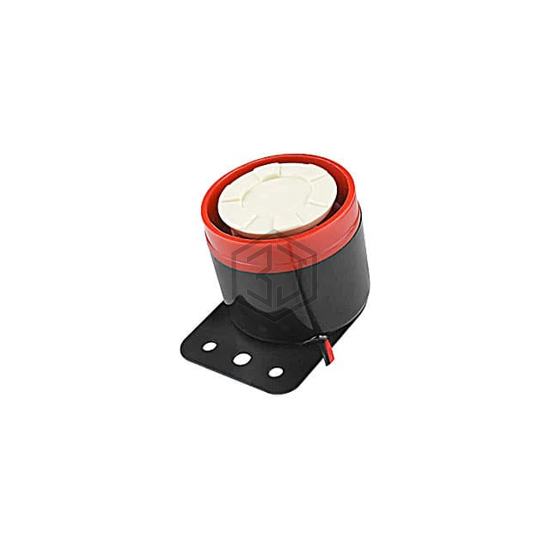

BUZZER PIEZO 12V 54MM FLANGE
CPS-5449-120PM is a Alarms, Buzzers, and Sirens manufactured by CUI Devices. BUZZER PIEZO 12V 54MM FLANGE. Key specifications: mounting type Panel Mount, Flange, operating temperature -20°C ~ 70°C, voltage - rated 12 V, current - supply 130mA.
In Stock: 270
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 12 V |
| Voltage Range | 6 ~ 15V |
| Frequency | 3.5kHz |
| Technology | Piezo |
| Operating Mode | Warble |
| Duration | - |
| Sound Pressure Level (SPL) | 105dB @ 12V, 30cm |
| Current - Supply | 130mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 70°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount, Flange |
| Termination | Wire Leads |
| Size / Dimension | 2.126" Dia (54.00mm) |
| Height - Seated (Max) | 1.862" (47.30mm) |
Submit your RFQ for CPS-5449-120PM and get a quote within 24 hours.
