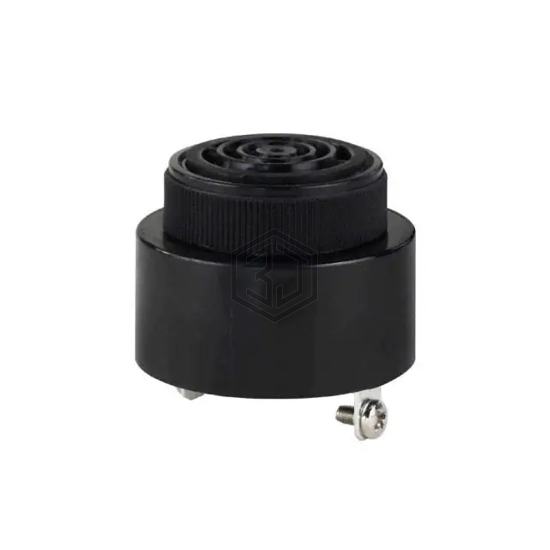

BUZZER PIEZO 12V 42.5MM PNL MNT
CPI-4232-70ST is a Alarms, Buzzers, and Sirens manufactured by CUI Devices. BUZZER PIEZO 12V 42.5MM PNL MNT. Key specifications: mounting type Panel Mount, operating temperature -30°C ~ 85°C, voltage - rated 12 V, current - supply 4 ~ 12mA.
In Stock: 327
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 12 V |
| Voltage Range | 6 ~ 16V |
| Frequency | 2.9kHz |
| Technology | Piezo |
| Operating Mode | Chime |
| Duration | - |
| Sound Pressure Level (SPL) | 78dB @ 16V, 60cm |
| Current - Supply | 4 ~ 12mA |
| Port Location | Top |
| Operating Temperature | -30°C ~ 85°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount |
| Termination | Screw Terminal, Quick Connect Tab - 0.256" (6.50mm) |
| Size / Dimension | 1.673" Dia (42.50mm) |
| Height - Seated (Max) | 1.280" (32.50mm) |
Submit your RFQ for CPI-4232-70ST and get a quote within 24 hours.
