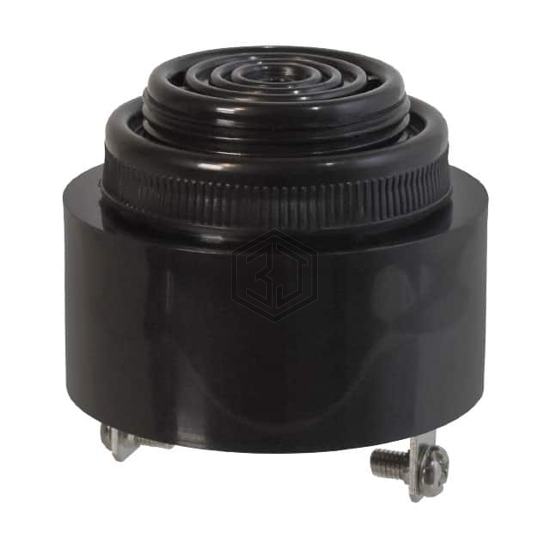

BUZZER PIEZO 12V 43MM PNL MNT
CPI-3533-97ST is a Alarms, Buzzers, and Sirens manufactured by CUI Devices. BUZZER PIEZO 12V 43MM PNL MNT. Key specifications: mounting type Panel Mount, operating temperature -20°C ~ 60°C, voltage - rated 12 V, current - supply 8mA.
In Stock: 1,048
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 12 V |
| Voltage Range | 4 ~ 28V |
| Frequency | 2.8kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 97dB @ 12V, 10cm |
| Current - Supply | 8mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 60°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount |
| Termination | Screw Terminal, Quick Connect Tab - 0.256" (6.5mm) |
| Size / Dimension | 1.693" Dia (43.00mm) |
| Height - Seated (Max) | 1.319" (33.50mm) |
