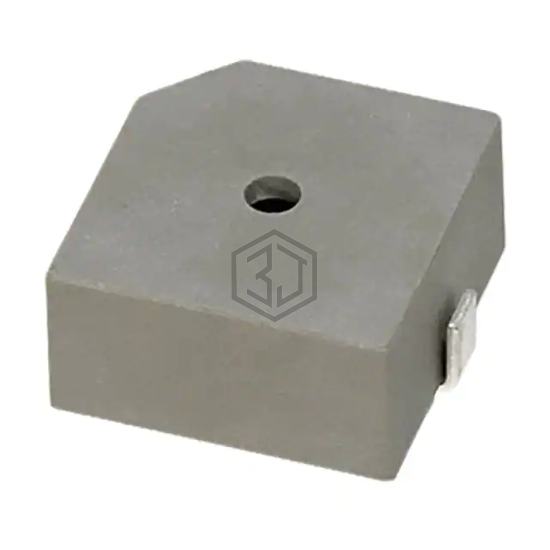

BUZZER MAGNETIC 5V 12.8X12.8 SMD
CMT-1271-88-SMT-TR is a Alarms, Buzzers, and Sirens manufactured by CUI Devices. BUZZER MAGNETIC 5V 12.8X12.8 SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 5 V, current - supply 40mA.
In Stock: 447
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Zero-Peak Signal |
| Voltage - Rated | 5 V |
| Voltage Range | 3 ~ 7V |
| Frequency | 2.4kHz |
| Technology | Magnetic |
| Operating Mode | - |
| Duration | - |
| Sound Pressure Level (SPL) | 88dB @ 5V, 10cm |
| Current - Supply | 40mA |
| Port Location | Top |
| Operating Temperature | -40°C ~ 85°C |
| Approval Agency | - |
| Ratings | Washable |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Termination | Solder Pads |
| Size / Dimension | 0.504" L x 0.504" W (12.80mm x 12.80mm) |
| Height - Seated (Max) | 0.299" (7.60mm) |
Submit your RFQ for CMT-1271-88-SMT-TR and get a quote within 24 hours.
