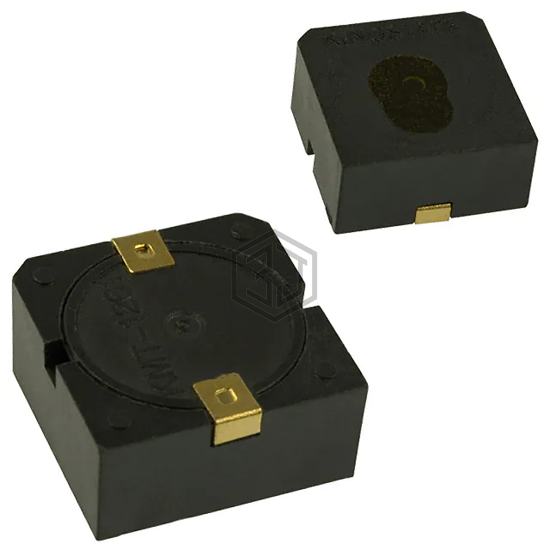

BUZZER PIEZO 10V 16.9X16.9MM SMD
CMT-1261-SMT is a Alarms, Buzzers, and Sirens manufactured by CUI Devices. BUZZER PIEZO 10V 16.9X16.9MM SMD. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 70°C, voltage - rated 10 V, current - supply 11mA.
In Stock: 5,762
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 10 V |
| Voltage Range | 20V (Max) |
| Frequency | 5kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 90dB @ 10V, 10cm |
| Current - Supply | 11mA |
| Port Location | Top |
| Operating Temperature | -30°C ~ 70°C |
| Approval Agency | - |
| Ratings | Washable |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Termination | Solder Pads |
| Size / Dimension | 0.665" L x 0.665" W (16.90mm x 16.90mm) |
| Height - Seated (Max) | 0.327" (8.30mm) |
