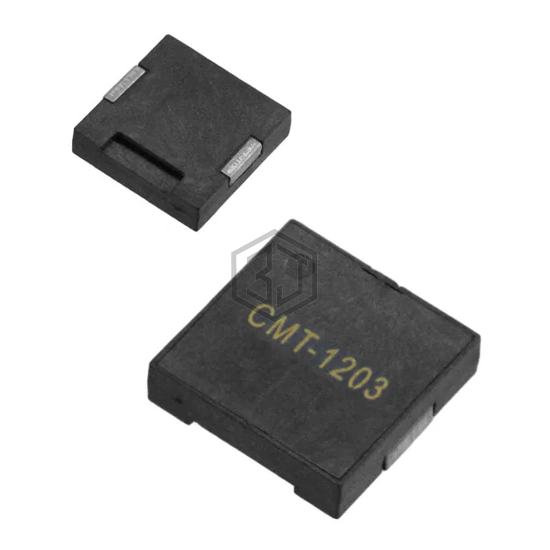

BUZZER PIEZO 5V 12X12MM SMD
CMT-1203-SMT-TR is a Alarms, Buzzers, and Sirens manufactured by CUI Devices. BUZZER PIEZO 5V 12X12MM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 120°C, voltage - rated 5 V, current - supply 5mA.
In Stock: 36,615
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 5 V |
| Voltage Range | 25V (Max) |
| Frequency | 4kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 81dB @ 5V, 10cm |
| Current - Supply | 5mA |
| Port Location | Side |
| Operating Temperature | -40°C ~ 120°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Termination | Solder Pads |
| Size / Dimension | 0.472" L x 0.472" W (12.00mm x 12.00mm) |
| Height - Seated (Max) | 0.130" (3.30mm) |
Submit your RFQ for CMT-1203-SMT-TR and get a quote within 24 hours.
