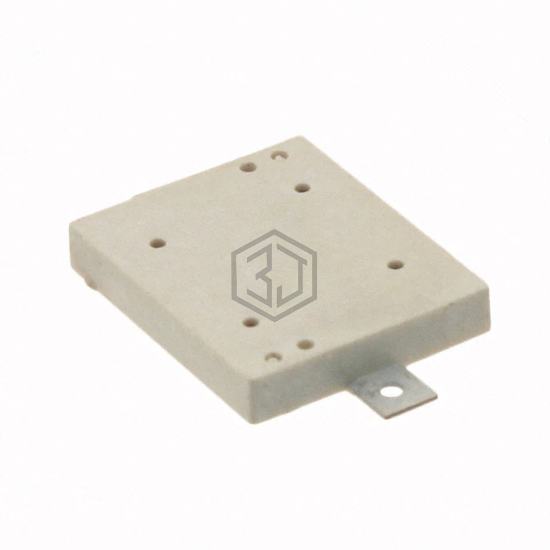

BUZZER PIEZO 5V 11X9MM SMD
CMT-1102-SMT-TR is a Alarms, Buzzers, and Sirens manufactured by CUI Devices. BUZZER PIEZO 5V 11X9MM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 80°C, voltage - rated 5 V, current - supply 4.5mA.
In Stock: 8,020
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 5 V |
| Voltage Range | 25V (Max) |
| Frequency | 4.1kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 73dB @ 5V, 10cm |
| Current - Supply | 4.5mA |
| Port Location | Side |
| Operating Temperature | -40°C ~ 80°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Termination | Solder Pads |
| Size / Dimension | 0.433" L x 0.354" W (11.00mm x 9.00mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
Submit your RFQ for CMT-1102-SMT-TR and get a quote within 24 hours.
