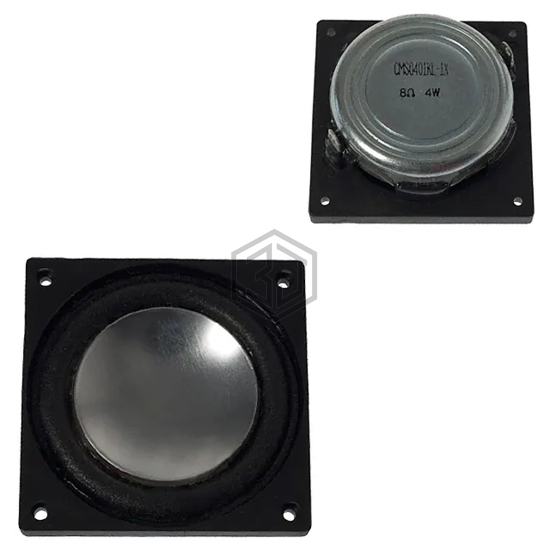

SPEAKER 8OHM 4W ENCLOSED 87DB
CMS0401KL-1X is a Speakers manufactured by CUI Devices. SPEAKER 8OHM 4W ENCLOSED 87DB. Key specifications: size / dimension 1.579" L x 1.579" W (40.10mm x 40.10mm), termination Solder Eyelet(s), power - max 6 W, frequency range 256 Hz ~ 20 kHz.
In Stock: 5,666
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 256 Hz ~ 20 kHz |
| Frequency - Self Resonant | 320Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 87.00 |
| Efficiency - Testing | 1W/500mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 4 W |
| Power - Max | 6 W |
| Port Location | Top |
| Shape | Round, Square Frame |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Eyelet(s) |
| Size / Dimension | 1.579" L x 1.579" W (40.10mm x 40.10mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
