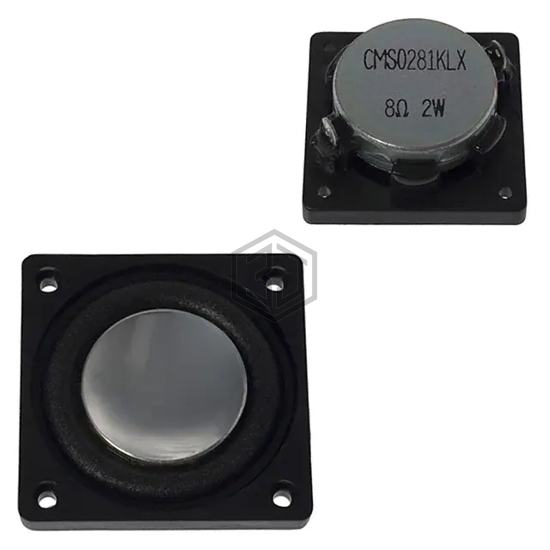

SPEAKER 8OHM 2W ENCLOSED 82DB
CMS0281KLX is a Speakers manufactured by CUI Devices. SPEAKER 8OHM 2W ENCLOSED 82DB. Key specifications: size / dimension 1.102" L x 1.102" W (28.00mm x 28.00mm), termination Solder Eyelet(s), power - max 4 W, frequency range 248 Hz ~ 20 kHz.
In Stock: 475
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 248 Hz ~ 20 kHz |
| Frequency - Self Resonant | 310Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 82.00 |
| Efficiency - Testing | 1W/500mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 2 W |
| Power - Max | 4 W |
| Port Location | Top |
| Shape | Round, Square Frame |
| Material - Cone | Paper |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Eyelet(s) |
| Size / Dimension | 1.102" L x 1.102" W (28.00mm x 28.00mm) |
| Height - Seated (Max) | 0.441" (11.20mm) |
Submit your RFQ for CMS0281KLX and get a quote within 24 hours.
