34.9 X 20 MM, RECTANGULAR, 1.5 W

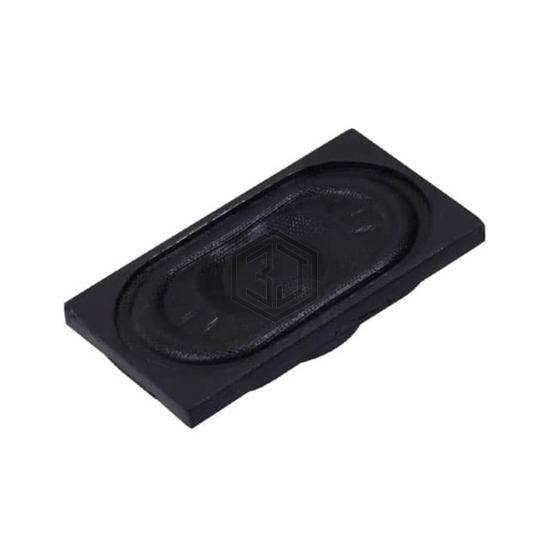

CMS-35206-158 is a Speakers manufactured by CUI Devices. 34.9 X 20 MM, RECTANGULAR, 1.5 W. Key specifications: size / dimension 1.374" L x 0.787" W (34.90mm x 20.00mm), termination Solder Pads, power - max 2 W, frequency range 680 Hz ~ 20 kHz.
In Stock: 266
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 680 Hz ~ 20 kHz |
| Frequency - Self Resonant | 850Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 100.00 |
| Efficiency - Testing | 1.5W/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 1.5 W |
| Power - Max | 2 W |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | Cloth |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 1.374" L x 0.787" W (34.90mm x 20.00mm) |
| Height - Seated (Max) | 0.250" (6.35mm) |
Submit your RFQ for CMS-35206-158 and get a quote within 24 hours.
