35 X 20 MM, RECTANGULAR FRAME, 1

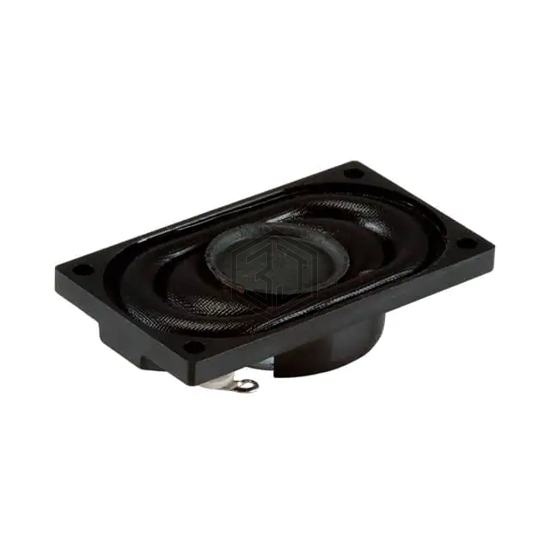

CMS-3520-18N is a Speakers manufactured by CUI Devices. 35 X 20 MM, RECTANGULAR FRAME, 1. Key specifications: size / dimension 1.378" L x 0.787" W (35.00mm x 20.00mm), termination Solder Eyelet(s), power - max 1.5 W, frequency range 700 Hz ~ 10 kHz.
In Stock: 985
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 700 Hz ~ 10 kHz |
| Frequency - Self Resonant | 700Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 85.00 |
| Efficiency - Testing | 1W/500mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 1 W |
| Power - Max | 1.5 W |
| Port Location | Top |
| Shape | Oval, Rectangular Frame |
| Material - Cone | Cloth |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Eyelet(s) |
| Size / Dimension | 1.378" L x 0.787" W (35.00mm x 20.00mm) |
| Height - Seated (Max) | 0.299" (7.60mm) |
Submit your RFQ for CMS-3520-18N and get a quote within 24 hours.
