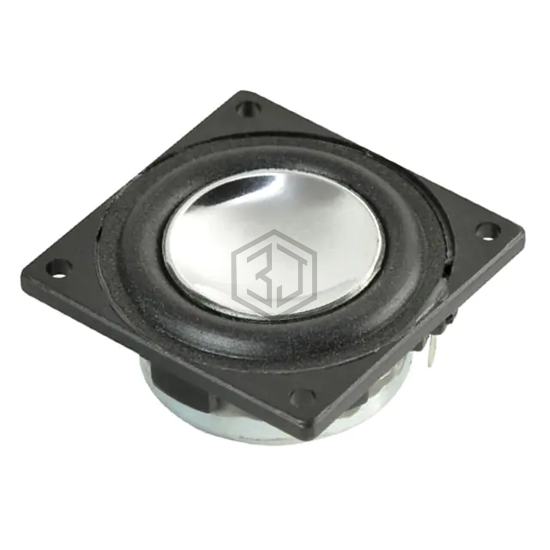

SPEAKER 8OHM 3W ENCLOSED 80DB
CMS-34348N is a Speakers manufactured by CUI Devices. SPEAKER 8OHM 3W ENCLOSED 80DB. Key specifications: size / dimension 1.339" L x 1.339" W (34.00mm x 34.00mm), termination Solder Eyelet(s), power - max 4 W, frequency range 304 Hz ~ 10 kHz.
In Stock: 6,806
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 304 Hz ~ 10 kHz |
| Frequency - Self Resonant | 380Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 80.00 |
| Efficiency - Testing | 1W/500mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 3 W |
| Power - Max | 4 W |
| Port Location | Top |
| Shape | Round, Square Frame |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Eyelet(s) |
| Size / Dimension | 1.339" L x 1.339" W (34.00mm x 34.00mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
Submit your RFQ for CMS-34348N and get a quote within 24 hours.
