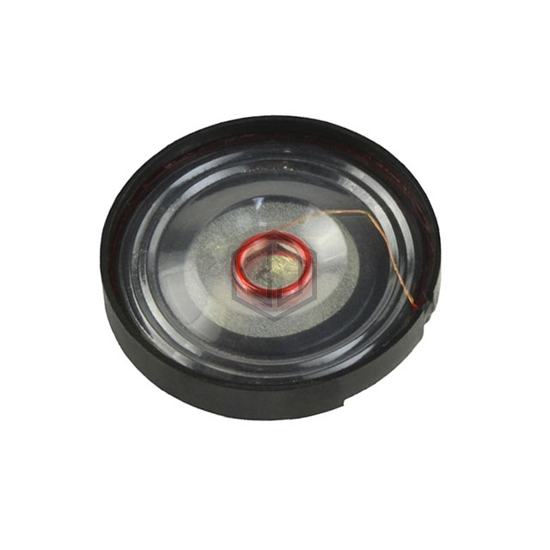

SPEAKER 8OHM 100MW ENCLOSED 88DB
CMS-29958F is a Speakers manufactured by CUI Devices. SPEAKER 8OHM 100MW ENCLOSED 88DB. Key specifications: size / dimension 1.142" Dia (29.00mm), termination Solder Pads, power - max 200 mW, frequency range 520 Hz ~ 4 kHz.
In Stock: 151
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 520 Hz ~ 4 kHz |
| Frequency - Self Resonant | 650Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 78.00 |
| Efficiency - Testing | 1W/1M |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 100 mW |
| Power - Max | 200 mW |
| Port Location | Top |
| Shape | Round |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Ferrite |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 1.142" Dia (29.00mm) |
| Height - Seated (Max) | 0.374" (9.50mm) |
Submit your RFQ for CMS-29958F and get a quote within 24 hours.
