SPEAKER 8OHM 200MW TOP PORT 79DB

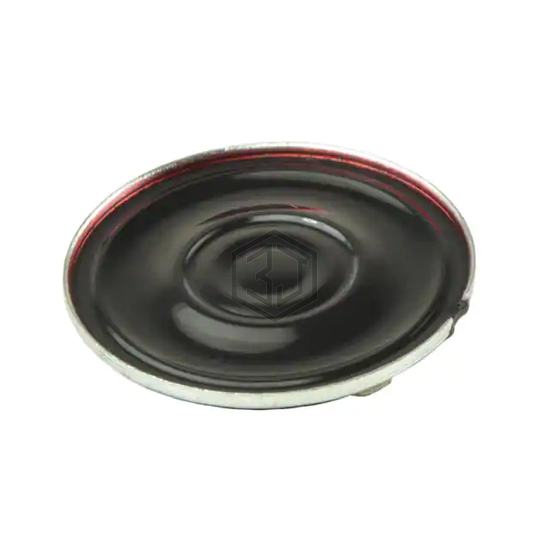

CMS-26418N is a Speakers manufactured by CUI Devices. SPEAKER 8OHM 200MW TOP PORT 79DB. Key specifications: size / dimension 1.024" Dia (26.00mm), termination Solder Pads, power - max 300 mW, frequency range 416 Hz ~ 6 kHz.
In Stock: 692
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 416 Hz ~ 6 kHz |
| Frequency - Self Resonant | 520Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 79.00 |
| Efficiency - Testing | 1W/1M |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 200 mW |
| Power - Max | 300 mW |
| Port Location | Top |
| Shape | Round |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 1.024" Dia (26.00mm) |
| Height - Seated (Max) | 0.161" (4.10mm) |
