25 X 14 MM, RECTANGULAR, 1.5 W,

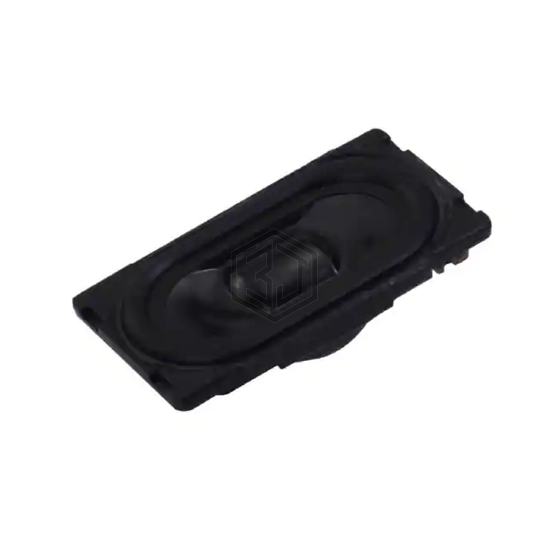

CMS-25145-158SP is a Speakers manufactured by CUI Devices. 25 X 14 MM, RECTANGULAR, 1.5 W,. Key specifications: size / dimension 0.984" L x 0.551" W (25.00mm x 14.00mm), termination Solder Pads, power - max 1.8 W, frequency range 560 Hz ~ 10 kHz.
In Stock: 534
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 560 Hz ~ 10 kHz |
| Frequency - Self Resonant | 700Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 93.00 |
| Efficiency - Testing | 1.5W/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 1.5 W |
| Power - Max | 1.8 W |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | Foam |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.984" L x 0.551" W (25.00mm x 14.00mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
