20 X 10 MM, RECTANGULAR, 0.7 W,

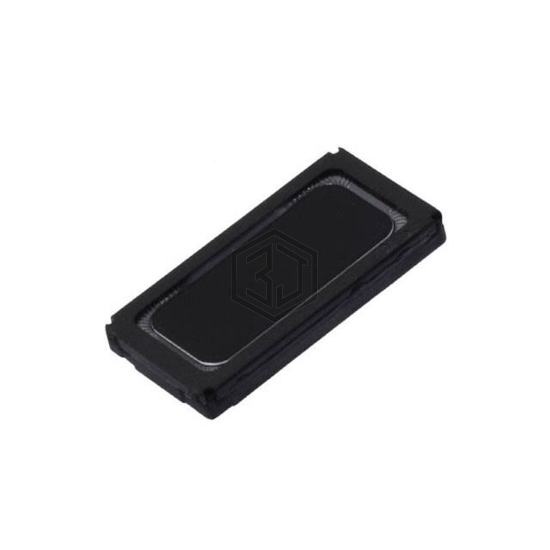

CMS-20103-078SP is a Speakers manufactured by CUI Devices. 20 X 10 MM, RECTANGULAR, 0.7 W,. Key specifications: size / dimension 0.787" L x 0.394" W (20.00mm x 10.00mm), termination Solder Pads, power - max 1 W, frequency range 440 Hz ~ 20 kHz.
In Stock: 461
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 440 Hz ~ 20 kHz |
| Frequency - Self Resonant | 550Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 90.00 |
| Efficiency - Testing | 700mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 700 mW |
| Power - Max | 1 W |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | Polyetheretherketone (PEEK) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.787" L x 0.394" W (20.00mm x 10.00mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for CMS-20103-078SP and get a quote within 24 hours.
