18 X 13 MM, RECTANGULAR FRAME, 0

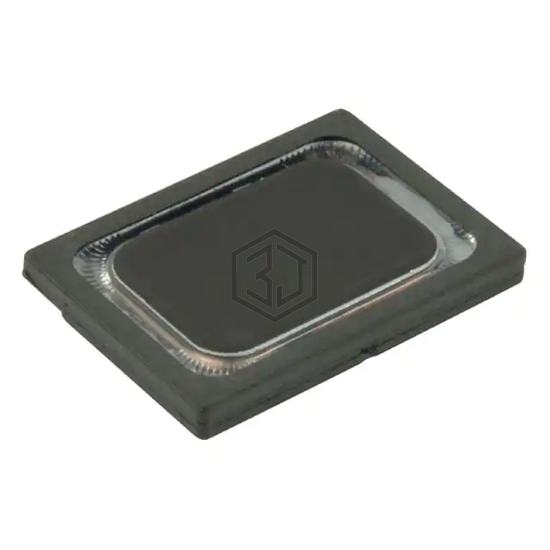

CMS-181325-078L100A is a Speakers manufactured by CUI Devices. 18 X 13 MM, RECTANGULAR FRAME, 0. Key specifications: size / dimension 0.709" L x 0.512" W (18.00mm x 13.00mm), termination Wire Leads with Connector, power - max 1 W, frequency range 500 Hz ~ 10 kHz.
In Stock: 497
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 500 Hz ~ 10 kHz |
| Frequency - Self Resonant | 800Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 93.00 |
| Efficiency - Testing | 700mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 700 mW |
| Power - Max | 1 W |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Wire Leads with Connector |
| Size / Dimension | 0.709" L x 0.512" W (18.00mm x 13.00mm) |
| Height - Seated (Max) | 0.098" (2.50mm) |
Submit your RFQ for CMS-181325-078L100A and get a quote within 24 hours.
