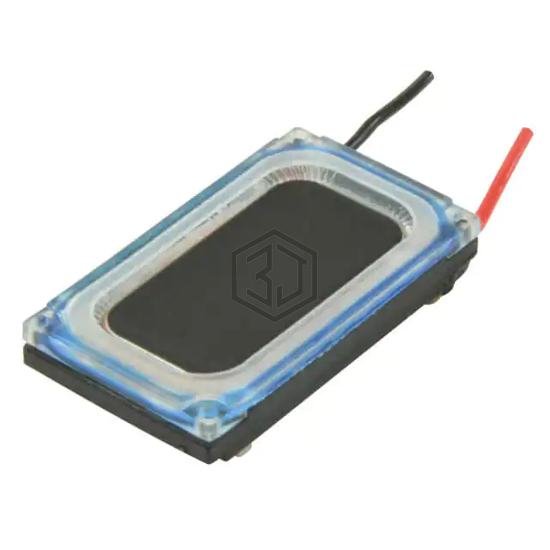

SPEAKER 16 X 9 MM ENCLOSED
CMS-16093-078L100 is a Speakers manufactured by CUI Devices. SPEAKER 16 X 9 MM ENCLOSED. Key specifications: size / dimension 0.630" L x 0.354" W (16.00mm x 9.00mm), termination Wire Leads, power - max 1 W, frequency range 100 Hz ~ 20 kHz.
In Stock: 475
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 100 Hz ~ 20 kHz |
| Frequency - Self Resonant | 550Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 91.00 |
| Efficiency - Testing | 700mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 700 mW |
| Power - Max | 1 W |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Wire Leads |
| Size / Dimension | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for CMS-16093-078L100 and get a quote within 24 hours.
