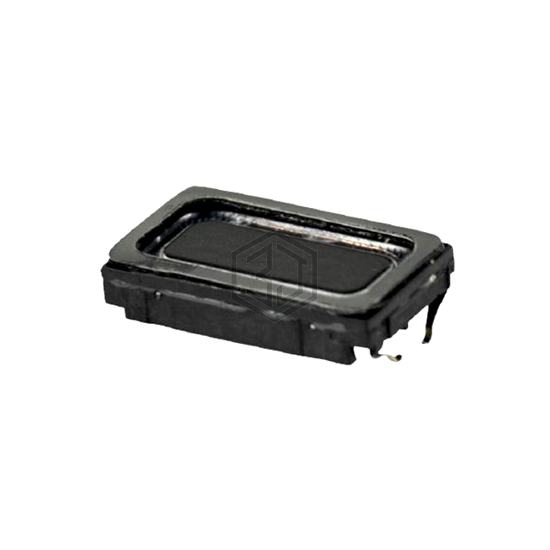

SPEAKER 6OHM 700MW ENCLOSED
CMS-160916-30-3 is a Speakers manufactured by CUI Devices. SPEAKER 6OHM 700MW ENCLOSED. Key specifications: size / dimension 0.630" L x 0.354" W (16.00mm x 9.00mm), termination Spring Type, power - max 1 W, frequency range 480 Hz ~ 20 kHz.
In Stock: 992
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 480 Hz ~ 20 kHz |
| Frequency - Self Resonant | 600Hz |
| Impedance | 6 Ohms |
| Efficiency - dBA | 88.00 |
| Efficiency - Testing | 800mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 800 mW |
| Power - Max | 1 W |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Spring Type |
| Size / Dimension | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
| Height - Seated (Max) | 0.138" (3.50mm) |
