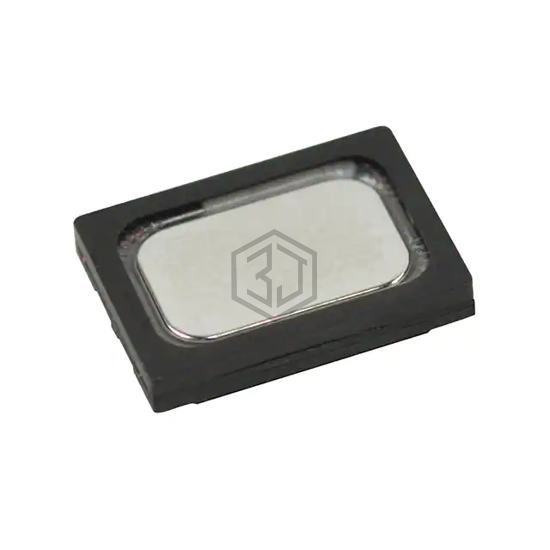

SPEAKER 8OHM 700MW ENCLOSED 91DB
CMS-15118D-SP is a Speakers manufactured by CUI Devices. SPEAKER 8OHM 700MW ENCLOSED 91DB. Key specifications: size / dimension 0.591" L x 0.433" W (15.00mm x 11.00mm), termination Solder Pads, power - max 1 W, frequency range 425 Hz ~ 10 kHz.
In Stock: 1,242
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | Low Profile |
| Frequency Range | 425 Hz ~ 10 kHz |
| Frequency - Self Resonant | 500Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 91.00 |
| Efficiency - Testing | 700mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 700 mW |
| Power - Max | 1 W |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for CMS-15118D-SP and get a quote within 24 hours.
