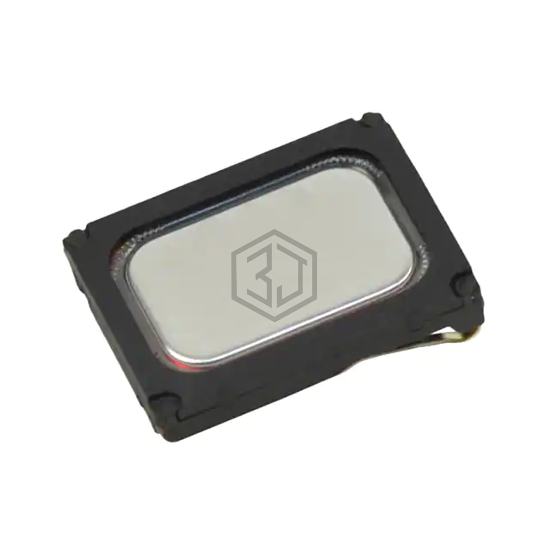

SPEAKER 8OHM 800MW ENCLOSED 88DB
CMS-15118C-SP is a Speakers manufactured by CUI Devices. SPEAKER 8OHM 800MW ENCLOSED 88DB. Key specifications: size / dimension 0.591" L x 0.433" W (15.00mm x 11.00mm), termination Spring Type, power - max 1 W, frequency range 400 Hz ~ 10 kHz.
In Stock: 102
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | Low Profile |
| Frequency Range | 400 Hz ~ 10 kHz |
| Frequency - Self Resonant | 500Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 88.00 |
| Efficiency - Testing | 800mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 800 mW |
| Power - Max | 1 W |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Spring Type |
| Size / Dimension | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for CMS-15118C-SP and get a quote within 24 hours.
