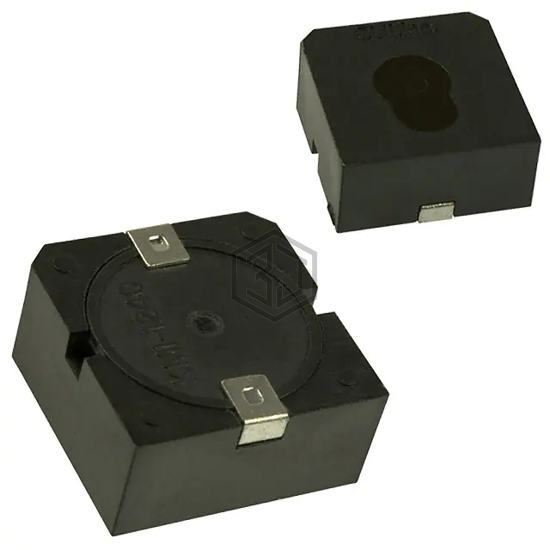

BUZZER PIEZO 12V 16.9X16.9MM SMD
CMI-1240-SMT is a Alarms, Buzzers, and Sirens manufactured by CUI Devices. BUZZER PIEZO 12V 16.9X16.9MM SMD. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 70°C, voltage - rated 12 V, current - supply 18mA.
In Stock: 4,975
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 12 V |
| Voltage Range | 3 ~ 18V |
| Frequency | 4kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 83dB @ 12V, 10cm |
| Current - Supply | 18mA |
| Port Location | Top |
| Operating Temperature | -30°C ~ 70°C |
| Approval Agency | - |
| Ratings | Washable |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Termination | Solder Pads |
| Size / Dimension | 0.665" L x 0.665" W (16.90mm x 16.90mm) |
| Height - Seated (Max) | 0.327" (8.30mm) |
