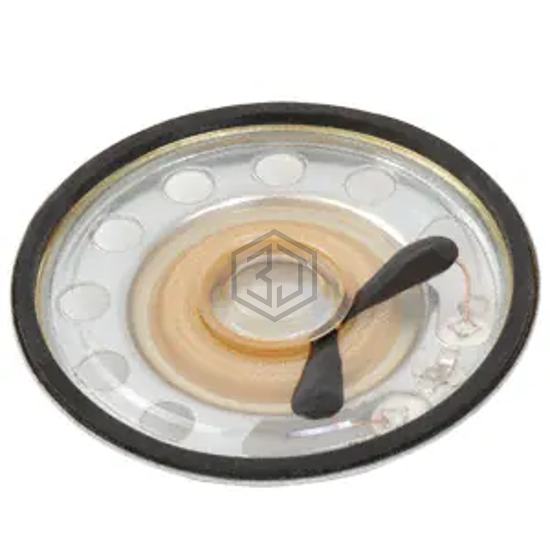

SPEAKER 8OHM 200MW TOP PORT 80DB
CLS0501M is a Speakers manufactured by CUI Devices. SPEAKER 8OHM 200MW TOP PORT 80DB. Key specifications: size / dimension 1.969" Dia (50.00mm), termination Solder Eyelet(s), power - max 500 mW, frequency range 550 Hz ~ 13 kHz.
In Stock: 991
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | Low Profile |
| Frequency Range | 550 Hz ~ 13 kHz |
| Frequency - Self Resonant | 550Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 80.00 |
| Efficiency - Testing | 200mW/500mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 200 mW |
| Power - Max | 500 mW |
| Port Location | Top |
| Shape | Round |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Eyelet(s) |
| Size / Dimension | 1.969" Dia (50.00mm) |
| Height - Seated (Max) | 0.354" (9.00mm) |
Submit your RFQ for CLS0501M and get a quote within 24 hours.
