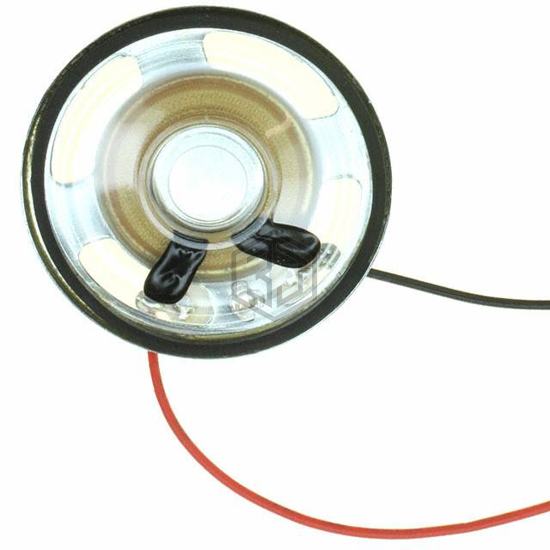

SPEAKER 8OHM 200MW TOP PORT 80DB
CLS0401M-L152 is a Speakers manufactured by CUI Devices. SPEAKER 8OHM 200MW TOP PORT 80DB. Key specifications: size / dimension 1.575" Dia (40.00mm), termination Wire Leads, power - max 500 mW, frequency range 600 Hz ~ 8 kHz.
In Stock: 317
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | Low Profile |
| Frequency Range | 600 Hz ~ 8 kHz |
| Frequency - Self Resonant | 600Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 80.00 |
| Efficiency - Testing | 200mW/500mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 200 mW |
| Power - Max | 500 mW |
| Port Location | Top |
| Shape | Round |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Wire Leads |
| Size / Dimension | 1.575" Dia (40.00mm) |
| Height - Seated (Max) | 0.382" (9.70mm) |
Submit your RFQ for CLS0401M-L152 and get a quote within 24 hours.
