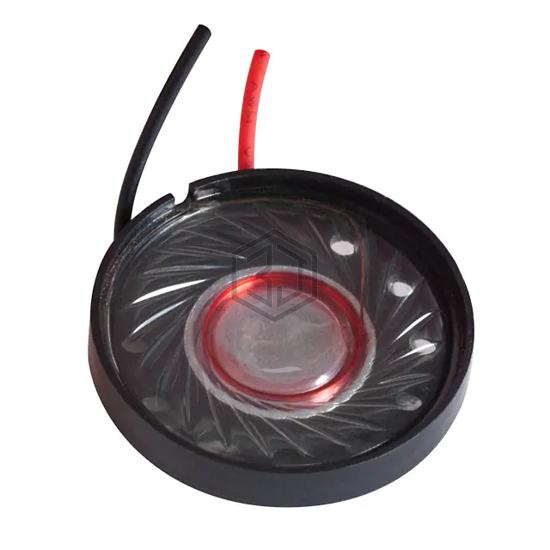

SPEAKER 8OHM 100MW TOP PORT 89DB
CLS0271M-L152 is a Speakers manufactured by CUI Devices. SPEAKER 8OHM 100MW TOP PORT 89DB. Key specifications: size / dimension 1.063" Dia (27.00mm), termination Wire Leads, power - max 200 mW, frequency range 530 Hz ~ 20 kHz.
In Stock: 2,579
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | Low Profile |
| Frequency Range | 530 Hz ~ 20 kHz |
| Frequency - Self Resonant | 530Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 89.00 |
| Efficiency - Testing | 1W/500mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 100 mW |
| Power - Max | 200 mW |
| Port Location | Top |
| Shape | Round |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Wire Leads |
| Size / Dimension | 1.063" Dia (27.00mm) |
| Height - Seated (Max) | 0.228" (5.80mm) |
Submit your RFQ for CLS0271M-L152 and get a quote within 24 hours.
