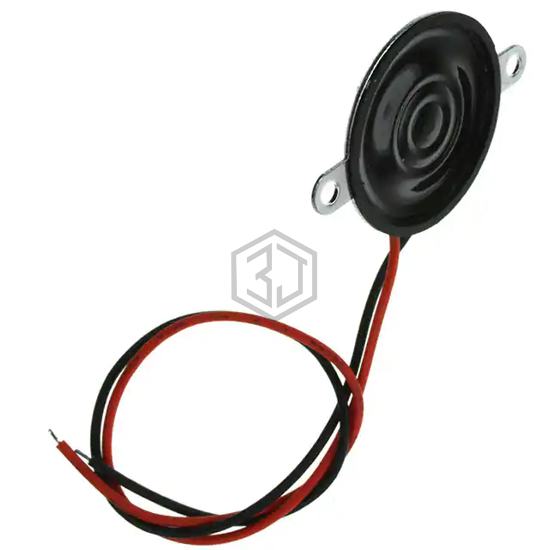

SPEAKER 8OHM 500MW TOP PORT 88DB
CLS0261MAE-L152 is a Speakers manufactured by CUI Devices. SPEAKER 8OHM 500MW TOP PORT 88DB. Key specifications: size / dimension 1.024" Dia (26.00mm), termination Wire Leads, power - max 1 W, frequency range 540 Hz ~ 6 kHz.
In Stock: 14,439
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | Low Profile |
| Frequency Range | 540 Hz ~ 6 kHz |
| Frequency - Self Resonant | 540Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 88.00 |
| Efficiency - Testing | 1W/500mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 500 mW |
| Power - Max | 1 W |
| Port Location | Top |
| Shape | Round |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Wire Leads |
| Size / Dimension | 1.024" Dia (26.00mm) |
| Height - Seated (Max) | 0.181" (4.60mm) |
