SPEAKER 8OHM 100MW TOP PORT 72DB

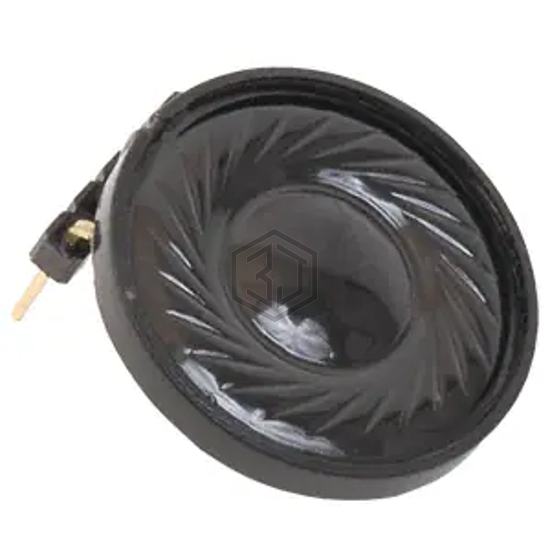

CLS0231MP-1 is a Speakers manufactured by CUI Devices. SPEAKER 8OHM 100MW TOP PORT 72DB. Key specifications: size / dimension 0.906" Dia (23.00mm), termination PC Pins, power - max 200 mW, frequency range 384 Hz ~ 20 kHz.
In Stock: 5,171
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | Low Profile |
| Frequency Range | 384 Hz ~ 20 kHz |
| Frequency - Self Resonant | 480Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 72.00 |
| Efficiency - Testing | 100mW/500mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 100 mW |
| Power - Max | 200 mW |
| Port Location | Top |
| Shape | Round |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | PC Pins |
| Size / Dimension | 0.906" Dia (23.00mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
Submit your RFQ for CLS0231MP-1 and get a quote within 24 hours.
