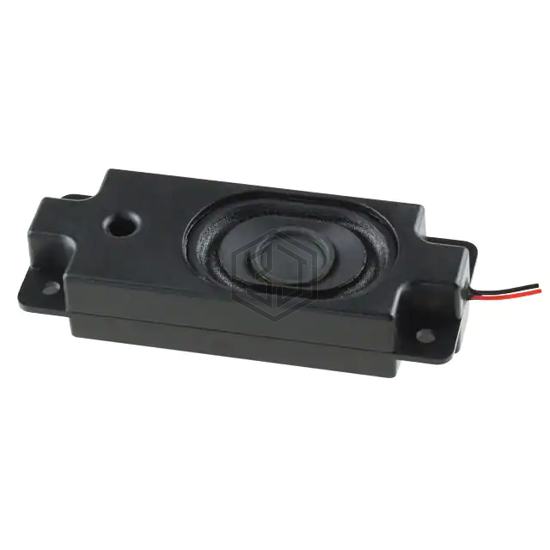

SPEAKER 80 X 31MM ENCLOSED
CES-803118-28PM is a Speakers manufactured by CUI Devices. SPEAKER 80 X 31MM ENCLOSED. Key specifications: size / dimension 3.150" L x 1.224" W (80.00mm x 31.10mm), termination Wire Leads, power - max 3 W, frequency range 200 Hz ~ 20 kHz.
In Stock: 487
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose, Enclosure Included |
| Frequency Range | 200 Hz ~ 20 kHz |
| Frequency - Self Resonant | 650Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 100.00 |
| Efficiency - Testing | 2W/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 2 W |
| Power - Max | 3 W |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | Cloth |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Wire Leads |
| Size / Dimension | 3.150" L x 1.224" W (80.00mm x 31.10mm) |
| Height - Seated (Max) | 0.709" (18.00mm) |
Submit your RFQ for CES-803118-28PM and get a quote within 24 hours.
