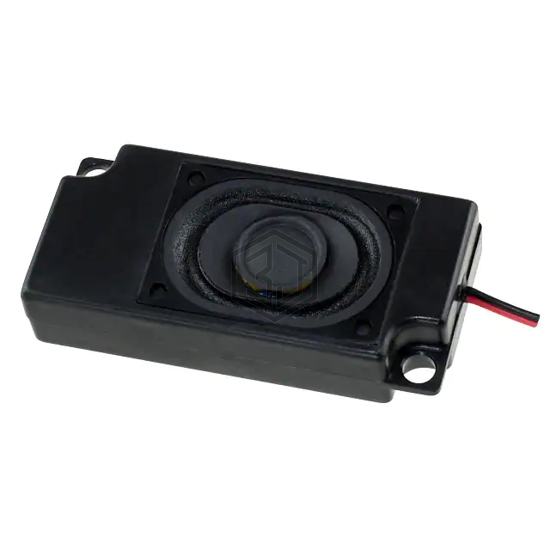

SPEAKER 70 X 33MM ENCLOSED
CES-703316-28PM is a Speakers manufactured by CUI Devices. SPEAKER 70 X 33MM ENCLOSED. Key specifications: size / dimension 2.756" L x 1.299" W (70.00mm x 33.00mm), termination Wire Leads, power - max 3 W, frequency range 650 Hz ~ 20 kHz.
In Stock: 467
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose, Enclosure Included |
| Frequency Range | 650 Hz ~ 20 kHz |
| Frequency - Self Resonant | 650Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 102.00 |
| Efficiency - Testing | 2W/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 2 W |
| Power - Max | 3 W |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | Paper/Cloth |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Wire Leads |
| Size / Dimension | 2.756" L x 1.299" W (70.00mm x 33.00mm) |
| Height - Seated (Max) | 0.630" (16.00mm) |
