50 X 35 MM, ENCLOSED, RECTANGULA

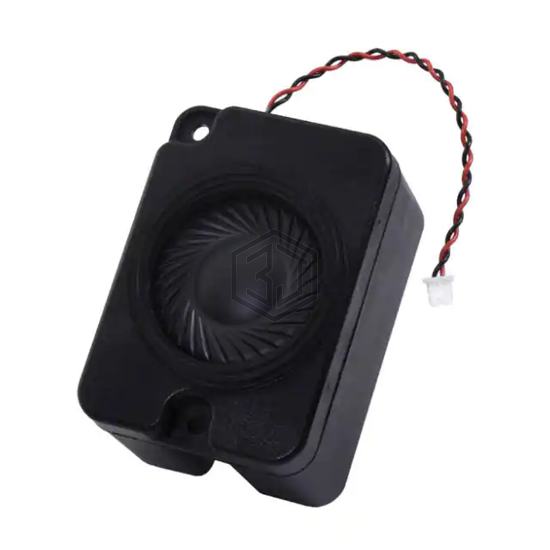

CES-503528-28PM-67 is a Speakers manufactured by CUI Devices. 50 X 35 MM, ENCLOSED, RECTANGULA. Key specifications: size / dimension 1.969" L x 1.378" W (50.00mm x 35.00mm), termination Wire Leads with Connector, ingress protection IP67 - Dust Tight, Waterproof, power - max 2.5 W.
In Stock: 780
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose, Enclosure Included |
| Frequency Range | 544 Hz ~ 20 kHz |
| Frequency - Self Resonant | 680Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 97.00 |
| Efficiency - Testing | 2W/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 2 W |
| Power - Max | 2.5 W |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | Polyethylenimine (PEI) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Ratings | - |
| Termination | Wire Leads with Connector |
| Size / Dimension | 1.969" L x 1.378" W (50.00mm x 35.00mm) |
| Height - Seated (Max) | 1.094" (27.80mm) |
Submit your RFQ for CES-503528-28PM-67 and get a quote within 24 hours.
