39 X 20 MM, ENCLOSED, RECTANGULA

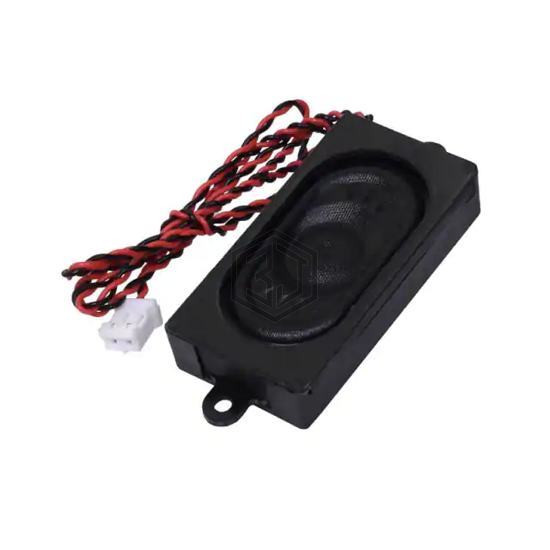

CES-39209-28PM is a Speakers manufactured by CUI Devices. 39 X 20 MM, ENCLOSED, RECTANGULA. Key specifications: size / dimension 1.732" L x 0.787" W (44.00mm x 20.00mm), termination Wire Leads with Connector, power - max 2.5 W, frequency range 960 Hz ~ 20 kHz.
In Stock: 86
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose, Enclosure Included |
| Frequency Range | 960 Hz ~ 20 kHz |
| Frequency - Self Resonant | 1.2kHz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 88.00 |
| Efficiency - Testing | 100mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 2 W |
| Power - Max | 2.5 W |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | Cloth |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Wire Leads with Connector |
| Size / Dimension | 1.732" L x 0.787" W (44.00mm x 20.00mm) |
| Height - Seated (Max) | 0.366" (9.30mm) |
Submit your RFQ for CES-39209-28PM and get a quote within 24 hours.
