35.9 X 18.5 MM, ENCLOSED, RECTAN

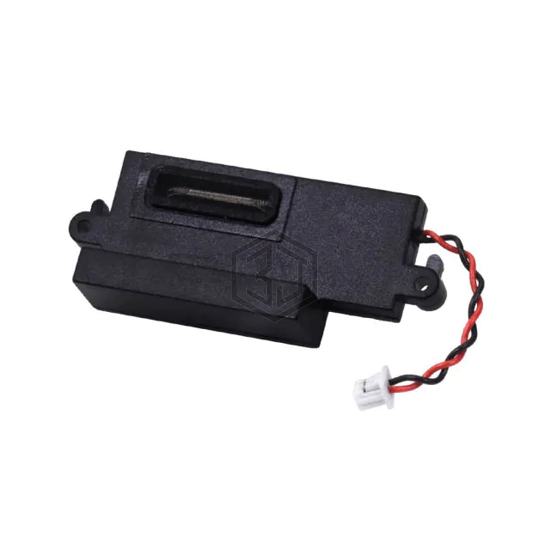

CES-361810-18PM is a Speakers manufactured by CUI Devices. 35.9 X 18.5 MM, ENCLOSED, RECTAN. Key specifications: size / dimension 1.610" L x 0.728" W (40.90mm x 18.50mm), termination Wire Leads with Connector, power - max 1.2 W, frequency range 800 Hz ~ 10 kHz.
In Stock: 233
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose, Enclosure Included |
| Frequency Range | 800 Hz ~ 10 kHz |
| Frequency - Self Resonant | 1kHz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 90.50 |
| Efficiency - Testing | 1W/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 1 W |
| Power - Max | 1.2 W |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | Polyetheretherketone (PEEK) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Wire Leads with Connector |
| Size / Dimension | 1.610" L x 0.728" W (40.90mm x 18.50mm) |
| Height - Seated (Max) | 0.421" (10.70mm) |
