30 X 20 MM, ENCLOSED, RECTANGULA

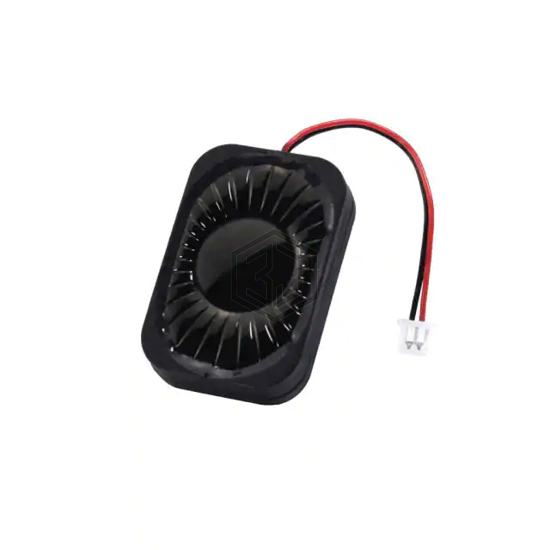

CES-303206-240L40-67 is a Speakers manufactured by CUI Devices. 30 X 20 MM, ENCLOSED, RECTANGULA. Key specifications: size / dimension 1.181" L x 0.787" W (30.00mm x 20.00mm), termination Wire Leads with Connector, ingress protection IP67 - Dust Tight, Waterproof, power - max 2.5 W.
In Stock: 311
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose, Enclosure Included |
| Frequency Range | 1.28 kHz ~ 20 kHz |
| Frequency - Self Resonant | 1.6kHz |
| Impedance | 4 Ohms |
| Efficiency - dBA | 101.00 |
| Efficiency - Testing | 2W/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 2 W |
| Power - Max | 2.5 W |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | Polyethylene Naphthalate (PEN) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Ratings | - |
| Termination | Wire Leads with Connector |
| Size / Dimension | 1.181" L x 0.787" W (30.00mm x 20.00mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
