30 X 25.6 MM, ENCLOSED, RECTANGU

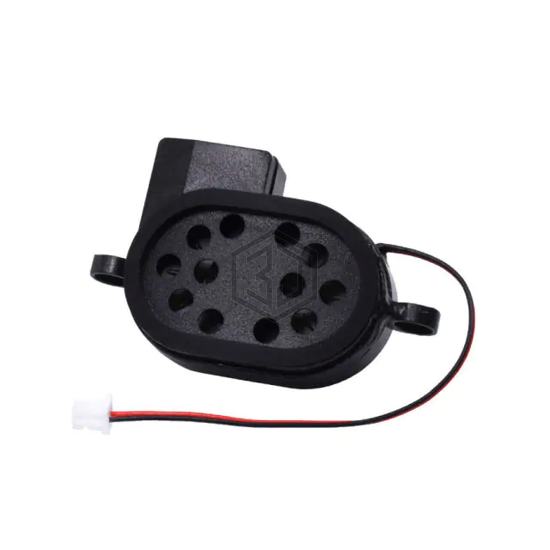

CES-302611-158PM-67 is a Speakers manufactured by CUI Devices. 30 X 25.6 MM, ENCLOSED, RECTANGU. Key specifications: size / dimension 1.181" L x 0.984" W (30.00mm x 25.00mm), termination Wire Leads with Connector, ingress protection IP67 - Dust Tight, Waterproof, power - max 1.8 W.
In Stock: 357
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose, Enclosure Included |
| Frequency Range | 720 Hz ~ 15 kHz |
| Frequency - Self Resonant | 900Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 95.00 |
| Efficiency - Testing | 1.5W/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 1.5 W |
| Power - Max | 1.8 W |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | Polyurethane (PU), Polyethylenimine (PEI) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Ratings | - |
| Termination | Wire Leads with Connector |
| Size / Dimension | 1.181" L x 0.984" W (30.00mm x 25.00mm) |
| Height - Seated (Max) | 0.429" (10.90mm) |
Submit your RFQ for CES-302611-158PM-67 and get a quote within 24 hours.
