30 X 20 MM, ENCLOSED, RECTANGULA

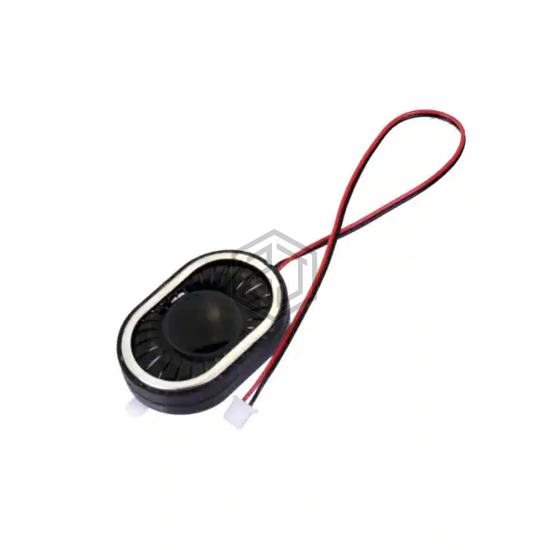

CES-30207-158L120-67 is a Speakers manufactured by CUI Devices. 30 X 20 MM, ENCLOSED, RECTANGULA. Key specifications: size / dimension 1.181" L x 0.787" W (30.00mm x 20.00mm), termination Wire Leads with Connector, ingress protection IP67 - Dust Tight, Waterproof, power - max 2 W.
In Stock: 1,096
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose, Enclosure Included |
| Frequency Range | 1.36 kHz ~ 20 kHz |
| Frequency - Self Resonant | 1.7kHz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 100.00 |
| Efficiency - Testing | 1.5W/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 1.5 W |
| Power - Max | 2 W |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | Polyethylene Naphthalate (PEN) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Ratings | - |
| Termination | Wire Leads with Connector |
| Size / Dimension | 1.181" L x 0.787" W (30.00mm x 20.00mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
Submit your RFQ for CES-30207-158L120-67 and get a quote within 24 hours.
