24 X 13 MM, ENCLOSED, RECTANGULA

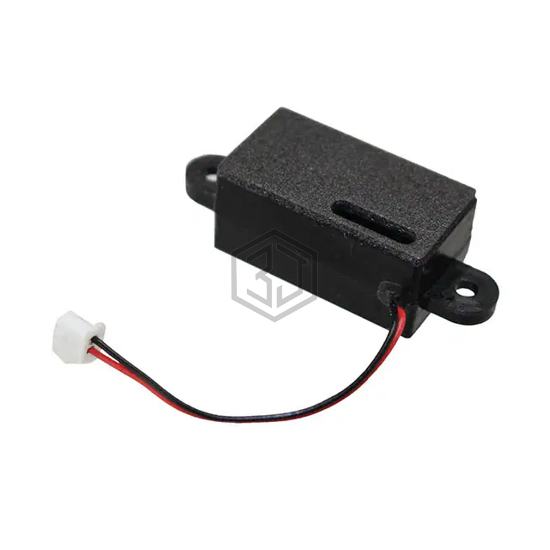

CES-231210-18PM is a Speakers manufactured by CUI Devices. 24 X 13 MM, ENCLOSED, RECTANGULA. Key specifications: size / dimension 1.181" L x 0.512" W (30.00mm x 13.00mm), termination Wire Leads with Connector, power - max 1.5 W, frequency range 680 Hz ~ 20 kHz.
In Stock: 1,125
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose, Enclosure Included |
| Frequency Range | 680 Hz ~ 20 kHz |
| Frequency - Self Resonant | 850Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 88.00 |
| Efficiency - Testing | 1W/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 1 W |
| Power - Max | 1.5 W |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | Polyetheretherketone (PEEK) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Wire Leads with Connector |
| Size / Dimension | 1.181" L x 0.512" W (30.00mm x 13.00mm) |
| Height - Seated (Max) | 0.433" (11.00mm) |
