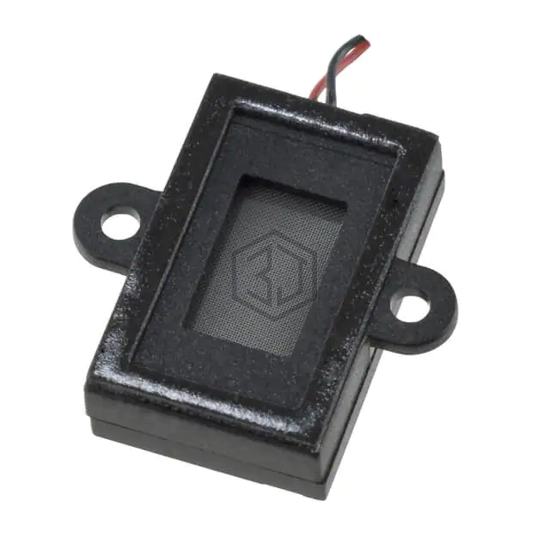

SPEAKER 20 X 13MM ENCLOSED
CES-20134-088PM is a Speakers manufactured by CUI Devices. SPEAKER 20 X 13MM ENCLOSED. Key specifications: size / dimension 0.787" L x 0.633" W (20.00mm x 16.09mm), termination Wire Leads, power - max 1 W, frequency range 500 Hz ~ 20 kHz.
In Stock: 1,240
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose, Enclosure Included |
| Frequency Range | 500 Hz ~ 20 kHz |
| Frequency - Self Resonant | 1.3kHz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 91.00 |
| Efficiency - Testing | 800mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 800 mW |
| Power - Max | 1 W |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | Polyetheretherketone (PEEK) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Wire Leads |
| Size / Dimension | 0.787" L x 0.633" W (20.00mm x 16.09mm) |
| Height - Seated (Max) | 0.192" (4.87mm) |
Submit your RFQ for CES-20134-088PM and get a quote within 24 hours.
