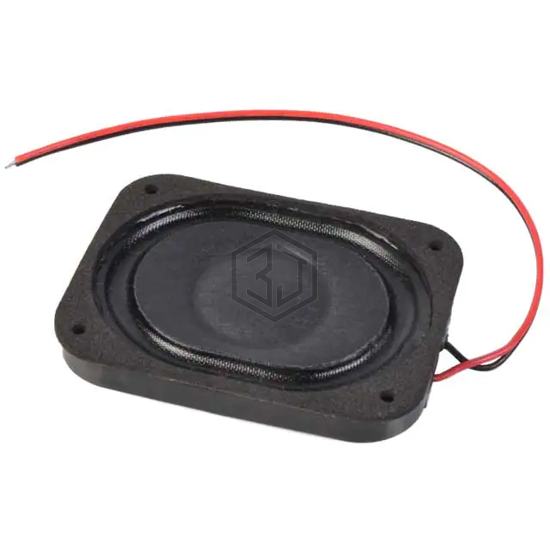

SPEAKER 4OHM 2W TOP PORT 102DB
CDS-40304-L100 is a Speakers manufactured by CUI Devices. SPEAKER 4OHM 2W TOP PORT 102DB. Key specifications: size / dimension 1.575" L x 1.181" W (40.00mm x 30.00mm), termination Wire Leads, power - max 3 W, frequency range 320 Hz ~ 20 kHz.
In Stock: 9,062
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 320 Hz ~ 20 kHz |
| Frequency - Self Resonant | 400Hz |
| Impedance | 4 Ohms |
| Efficiency - dBA | 79.00 |
| Efficiency - Testing | 1W/1M |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 2 W |
| Power - Max | 3 W |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | Paper/Cloth |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Wire Leads |
| Size / Dimension | 1.575" L x 1.181" W (40.00mm x 30.00mm) |
| Height - Seated (Max) | 0.280" (7.10mm) |
Submit your RFQ for CDS-40304-L100 and get a quote within 24 hours.
