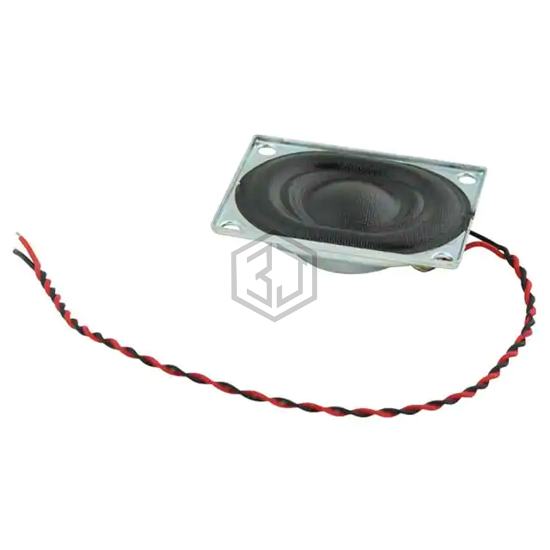

SPEAKER 8OHM 2W TOP PORT 95DB
CDS-27208-L100 is a Speakers manufactured by CUI Devices. SPEAKER 8OHM 2W TOP PORT 95DB. Key specifications: size / dimension 1.063" L x 0.787" W (27.00mm x 20.00mm), termination Wire Leads, power - max 2.5 W, frequency range 680 Hz ~ 20 kHz.
In Stock: 4,967
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 680 Hz ~ 20 kHz |
| Frequency - Self Resonant | 850Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 95.00 |
| Efficiency - Testing | 1W/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 2 W |
| Power - Max | 2.5 W |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | Cloth |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Wire Leads |
| Size / Dimension | 1.063" L x 0.787" W (27.00mm x 20.00mm) |
| Height - Seated (Max) | 0.232" (5.90mm) |
Submit your RFQ for CDS-27208-L100 and get a quote within 24 hours.
