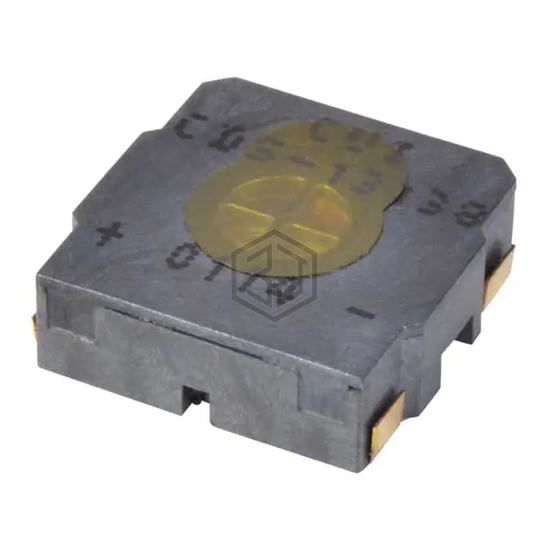

SPEAKER 8OHM 300MW TOP PORT 87DB
CDS-13138-SMT-TR is a Speakers manufactured by CUI Devices. SPEAKER 8OHM 300MW TOP PORT 87DB. Key specifications: size / dimension 0.512" L x 0.512" W (13.00mm x 13.00mm), termination Solder Pads, ratings Washable, power - max 1 W.
In Stock: 5,757
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 840 Hz ~ 1.26 kHz |
| Frequency - Self Resonant | 1050Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 70.00 |
| Efficiency - Testing | 1W/1M |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 700 mW |
| Power - Max | 1 W |
| Port Location | Top |
| Shape | Square |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Sm2Co17 |
| Ingress Protection | - |
| Ratings | Washable |
| Termination | Solder Pads |
| Size / Dimension | 0.512" L x 0.512" W (13.00mm x 13.00mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
